IEC 60745-2-5 Figure 110 Probe B" With 12mm Diameter 50mm Length For Circular Saws Test

Name: IEC 6074525 Figure 110 Probe Bquot With 12mm Diameter 50mm Length For Circular Saws Test
Brand: Sinuo
Price: 1 USD

Buy cheap IEC 60745-2-5 Figure 110 Probe B" With 12mm Diameter 50mm Length For Circular Saws Test product

Brand Name : Sinuo

Model Number : SN2210-87

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100 sets per month

Delivery Time : 3 Days

Packaging Details : Aluminium Box

Applied Standard : IEC 60745-2-5

Applied Figure : Figure 110

Probe diameter : 12mm

Probe length : 50mm

Probe material : Stainless steel

Test sample : Circular saws

Contact Now

IEC 60745-2-5 Figure 110 Probe B" With 12mm Diameter 50mm Length For Circular Saws Test

Product Overview:

Standard: IEC 60745-2-5 : Particular requirements for circular saws, clause 19.101.2.4 and Figure 110

Application: This probe is applicable to checking the accessibility of the cutting edge zone at the saw above the guide plate.

Test sample: Circular saws

For checking the accessibility of the cutting edge zone at the front of the saw above the guide plate, the rigid test probe ‘b’ of Figure 110 shall not contact the blade when the saw is set for a 90° cut and any depth of cut and the probe ‘b’ is centred with the blade then advanced in any single plane perpendicular to the blade and parallel to the guide plate, as specified in Figure 111. The test is repeated with probe ‘b’ offset 13 mm to the right of the blade centre and then offset 13 mm to the left of the blade centre.Compliance is checked by inspection and measurements.

IEC 60745-2-5 Figure 110 Probe B" With 12mm Diameter 50mm Length For Circular Saws Test

Technical Specifications:

Probe length	50mm
Probe diameter	12mm
Probe material	Stainless steel

IEC 60745-2-5 Figure 110 Probe B" With 12mm Diameter 50mm Length For Circular Saws Test

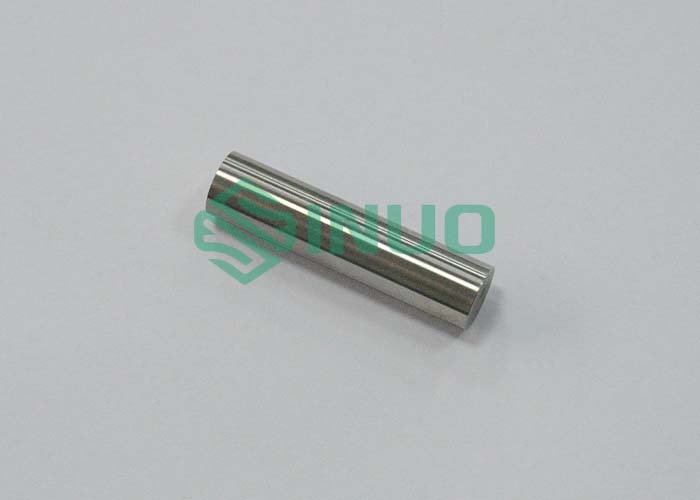

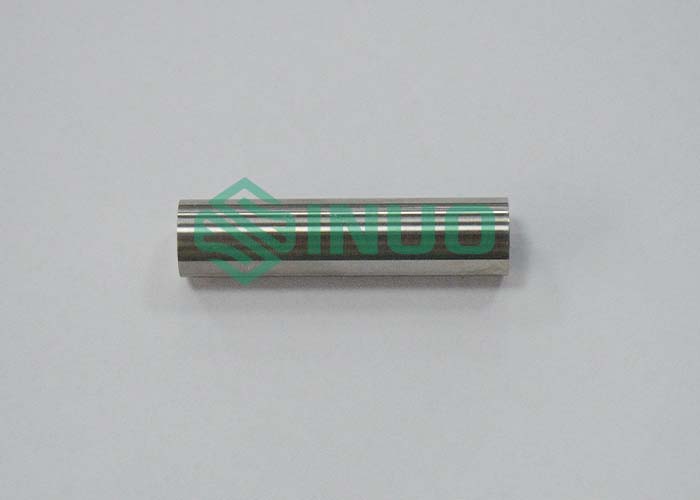

IEC 60745-2-5 Figure 110 Probe B" With 12mm Diameter 50mm Length For Circular Saws Test Images
