IEC 60068-2-68 Sand And Dust Test Chamber For Automotive & Electronic IP Protection Testing

Name: IEC 60068268 Sand And Dust Test Chamber For Automotive amp Electronic IP Protection Testing
Brand: Sinuo
Price: 1 USD

Buy cheap IEC 60068-2-68 Sand And Dust Test Chamber For Automotive & Electronic IP Protection Testing product

Brand Name : Sinuo

Model Number : SN441-2560L

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 10 sets per month

Delivery Time : 30 Days

Packaging Details : Plywood Case

Inner chamber : 1600*1600*1000mm(W*D*H)

Outer chamber : 2000*2400*1800 mm (W*D*H)

Fine dust : Below 75um

Air flow rate : No more than 2m/s

Dust concentration : 2kg/m³

Talc dosage : 2～5kgm³

Dust blowing method : Top-down

Air flow meter : 1-20L/M

Contact Now

IEC 60068-2-68 Sand and Dust Test Chamber for Automotive & Electronic IP Protection Testing

Product information:

Conforms to IEC60068-2-68-La2, ISO20653-La2, IEC60529, etc.

This equipment is suitable for testing electrical and electronic products, automobile and motorcycle parts, and seals to prevent sand and dust from entering the seals and shells in a sand and dust environment. It is used to test the performance of electronic and electrical products, automobile and motorcycle parts, and seals in the use, storage, and transportation of sand and dust environments. The purpose of the test is to determine the possible harmful effects of particles carried by airflow on electrical products. The test can be used to simulate open sand and dust air environment conditions induced by natural environment or artificial disturbances such as vehicle movement.

Design Principle:

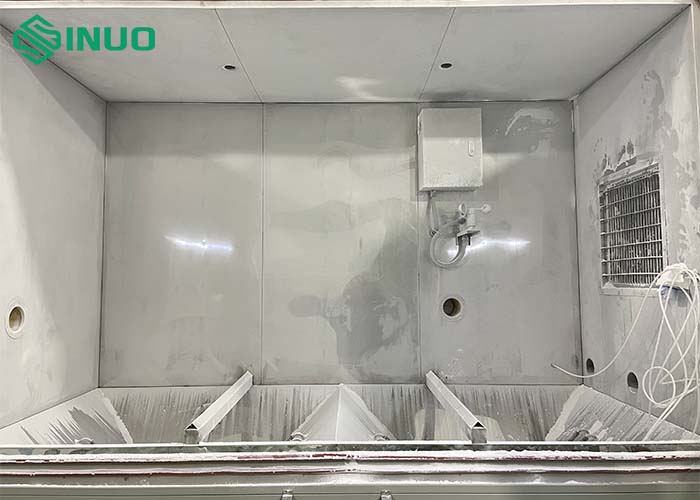

Design a conical funnel with a dust collection port at the bottom, and install a high-pressure turbine circulating fan suction port at the dust extraction port (bottom) to send the sucked dust to the top of the inner box and let it fall freely from top to bottom through the top of the box, thus starting a cycle over and over again.

Technical Parameters:

Inner chamber size	160016001000mm(WDH)
Outer chamber size	About 200024001800 mm (WDH)
Dust baking temperature range	RT+10℃～60℃
Fine dust	Below 75um
Air flow rate	No more than 2m/s
Dust concentration	2kg/m³
Talc dosage	2～5kgm³
Dust blowing method	Top-down
Air flow meter	1-20L/M
Metal mesh wire diameter	50um
Nominal spacing between lines	75um or below 150um
Shock time	1s～99h (adjustable)
Test time timing	1s～99h (adjustable)
Dust-blowing control cycle	1s～99h (adjustable)
Vacuum time	1s～99h (adjustable)
Controller control function	(1) Dust blowing time (stop, blow) h/m/s adjustable; (2) Cycle period adjustable; (3) Preset test time: 0s~999h99m99s adjustable; (4) Power-on mode: off-on-off
Circulation fan	Closed alloy low-noise motor. Multi-blade centrifugal fan
Load-bearing	120kg
Observation window	1 pcs
Lighting	1 pcs
Control system test piece power socket	Dustproof socket AC220V 16A

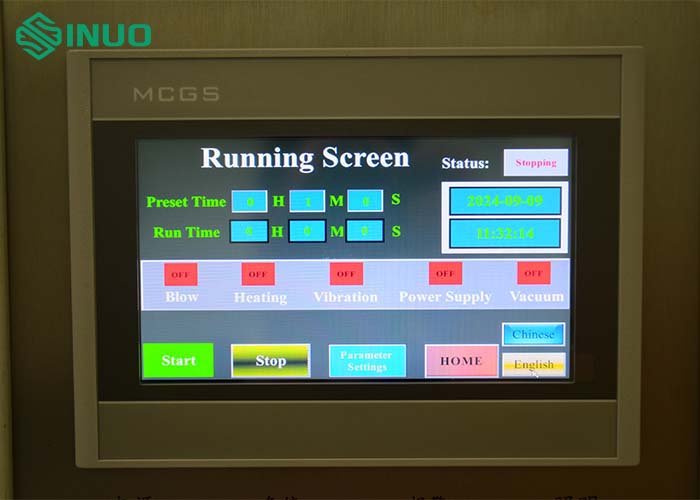

Control system	PLC controller + touch screen (Sinuo)
Vacuum system	Pressure regulating valve, suction nozzle, pressure regulating three-piece set, connecting pipe, vacuum pump
Dust heating system	Stainless steel mica heating jacket
Inner chamber material	SUS201 stainless steel mirror panel
Outer chamber material	A3 iron plate electrostatic spraying treatment
Basic structure	The test chamber, dust suction port, circulating dust blowing device, vacuum system, flow valve, heating system, protective screen, etc.
Usage Environment	Power supply: AC380V three-phase five-wire, 50Hz. Make a 32A air switch. The air switch must have a terminal block. The power cord is ≥ 4m².
Environmental conditions	Temperature (23±5)℃; Relative humidity 25%～70%RH; Atmospheric pressure 86～106kPa
Power	3KW (no load)
Safety protection system	Phase sequence protection, leakage protection
