IEC 62133-2 Temperature Controlled Type External Short Circuit Tester 408L Current 1000A

Name: IEC 621332 Temperature Controlled Type External Short Circuit Tester 408L Current 1000A
Brand: Sinuo
Price: 1 USD

Buy cheap IEC 62133-2 Temperature Controlled Type External Short Circuit Tester 408L Current 1000A product

Brand Name : Sinuo

Model Number : SN551-408L1000A

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 5 Sets Per Month

Delivery Time : 30 days

Packaging Details : Plywood Case

Max. load current : 1000A

DC response time : ≤5μs

Built-in resistor : 10±0.2mΩ

Control method : PLC control

Normal temperature : RT+10℃~100℃

Temperature rise rate : 3±1℃/min

Acquisition channel : 1 channel

Collection range : 0-1000A DC

Contact Now

IEC 62133-2 Temperature Controlled Type External Short Circuit Tester 408L Current 1000A

Product information:

It is conforms to the standard of IEC 60335-1:2021 Annex B, UN38.3 clause 4.5 Test T.5, UL 1642, IEC 62619:2017 clause 7.2.1, IEC62133-1:2017 clause 7.3.2 , IEC62133-2:2017 clause 7.3.1 and 7.3.2 , IEC62133:2014 clause 7.3.2,8.3.1, 8.3.2, IEC60086-4 clause 6.5.1, IEC60086-4 clause 6.5.8 6.5.9 , and so on.

Technical Parameters:

Name	Parameters
Model	SN551-408L1000A
Max. load current	1000A
DC response time	≤5μs
Built-in resistor	10±0.2mΩ
Inner chamber size	W700700HD600mm
Control method	PLC and Touch screen
Inner box material	Stainless steel
Sealing strip	Corrosion-resistant silicone.
Temperature control	Normal temperature RT+10℃~100℃ (can be preset) Temperature rise rate 3±1℃/min Temperature dial 0.5℃ Temperature uniformity: ±2℃
Test stop condition	1) The battery temperature drops to 20% lower than the peak; 2) Short circuit time
Battery surface temperature	Can monitor temperature changes during battery surface testing

Sample rack	Stainless steel SUS #201 perforated steel plate storage rack, with a maximum load-bearing capacity of 30KG on a single layer. The height is adjustable at the same time.
Hall element collects current signal	Hall elements are used to collect the current generated when the short-circuit system is short-circuited, avoiding the generation of contact resistance, and the data transmission is stable and accurate;
Lead hole	There is a lead hole with a diameter of 50mm on the left side of the box for test wires to pass through.
Chamber door	High-strength hinges are used to fix the door, and at least 2 sets of explosion-proof locks can be installed on the door to fix it.
Explosion-proof pressure relief device	It has the function of exhaust, explosion-proof and pressure relief. The rear of the protective box has a magnet-adsorbed pressure relief door (200*200mm). When strong airflow impacts, the pressure relief door automatically opens and closes to reduce the impact of the explosion.
Lighting	The test chamber door is designed with high-brightness LED lighting to make it easy to see the test conditions in the test chamber.
Smoke exhaust	Powerful smoke exhaust and air induction centrifuge: high temperature resistant, back smoke exhaust port diameter 60mm
High temperature motor	High-temperature-resistant long-axis motor/370W made in Taiwan for high-temperature boxes, multi-wing wind wheel with large air volume and low noise
Heater	Fin-type heat pipe nickel-chromium alloy U-shaped high-efficiency heater automatically calculates high-precision PID+SSR control (calculation cycle: 1~4S can be set), so that its heat loss is equivalent to the heating amount, so it is better than traditional ON/OFF Control saves about 10% power
Thermometer	Made in Taiwan, high precision, DIN specification grade A, ψ4.8mm, SUS #304 stainless steel, PT 100Ω
Explosion proof chain	The door is equipped with 3 explosion-proof chains to prevent the door from being blown out and injuring people.

Control panel security design	The control panel is built-in, and the touch screen and buttons will not be mistakenly pressed or collided by external objects or the body. It is safer.
Tempered glass window	The test chamber door is equipped with a 300*300mm double-layer tempered glass window, which can clearly observe the test conditions in the test chamber.
Bottom design	There are 4 universal casters for easy movement and transportation. It is also equipped with 4 foot cups for convenient positioning and fixing equipment.
Explosion-proof lighting design	The door is designed with high-brightness explosion-proof LED lights to illuminate the entire testing space.
Current acquisition channel	1 channel
Current collection range	0-1000A DC
Current acquisition accuracy	±0.5%F.S
Current acquisition rate	1 time/S
Voltage acquisition channel	1 channel
Voltage collection range	0～100V
Voltage acquisition accuracy	±0.2%FS
Voltage acquisition rate	1 time/S
Temperature acquisition channel	1 channel
Temperature collection range	RT～100℃
Temperature collection accuracy	±2℃
Temperature acquisition rate	1time/S
Battery surface temperature collection channel	2 channels -20-800℃
Remote control short circuit	Remote control of short circuit test can be achieved
Chamber external dimensions	Approx. W950 X D950 X H1700mm (Subject to design)
Chamber weight	Approx.300kg
Voltage and frequency	AC 220V, 50HZ
Total power	3 KW

IEC 62133-2 Temperature Controlled Type External Short Circuit Tester 408L Current 1000A

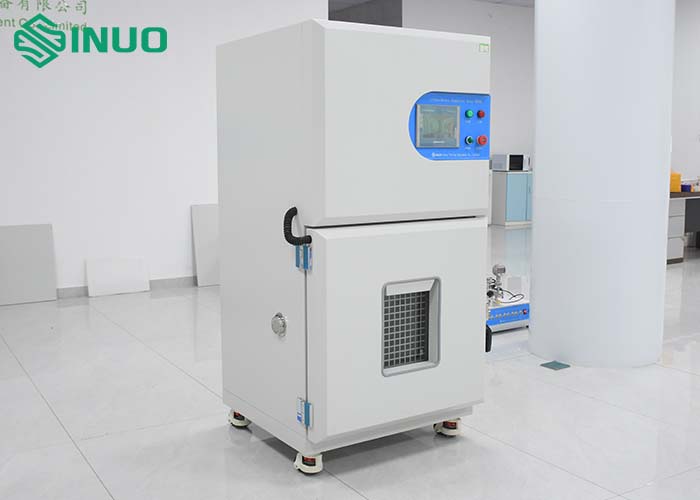

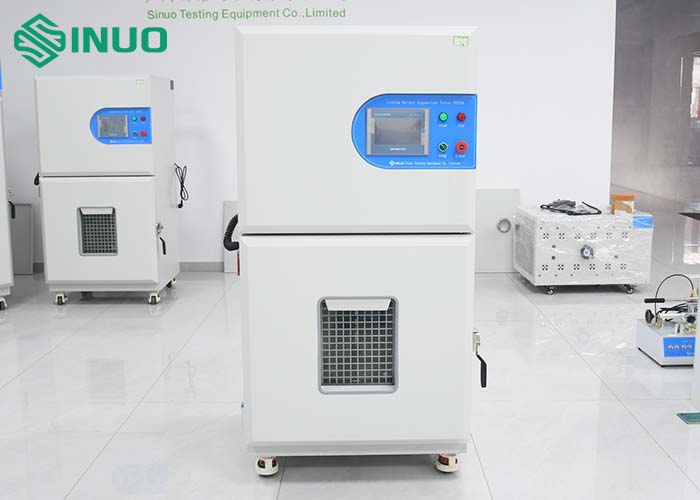

IEC 62133-2 Temperature Controlled Type External Short Circuit Tester 408L Current 1000A Images
