IEC60884-1 Flexible Cable Cord Anchorage 0.425N.M Torque Test Device

Brand Name : Sinuo

Model Number : SN2120A

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20 Sets Per Month

Delivery Time : 20 days

Packaging Details : Carton Box

Applied Standard : IEC60884-1

Applied Clause : Clause 23.2

Torque Disc Diameter : 100 mm

Load Weights : 2N*1、3N*1、5N*1、7N*1、8.5N*1

Achieved Torque : 0.1,0.15,0.25,0.35,0.425N.m

Equipment Warranty : 1Year

Contact Now



IEC60884-1 Flexible Cable Cord Anchorages Torque Test Apparatus



System overview



Complies with IEC 60884-1:2006 clause 23.2 and table 18, VDE0620 clause 23.2 and table18, etc.

It is used to check wear resistance of plug, mobile socket mobile sockets, fixed parts fitted with conductors and their connectors under sheath protection without stress, including twisting, at the end of the conductor.Using weights to apply force to the specimen with a certain force arm to meet the standard torque value.

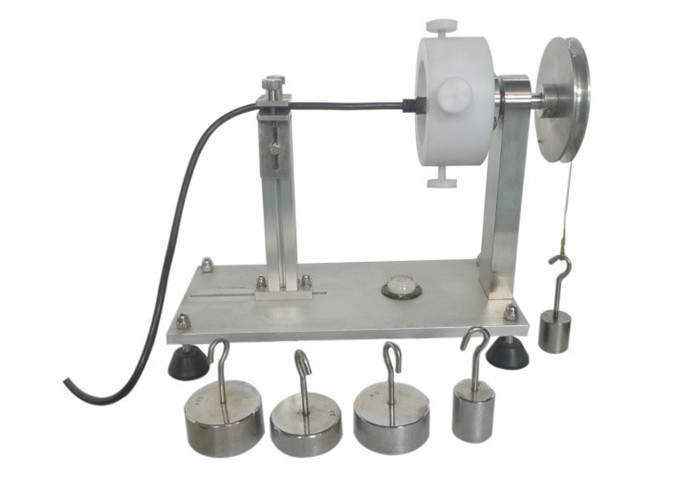

Structure



Using weights to apply force to the specimen with a certain force arm to meet the standard torque value.

Outer size:about:300×200×300(mm)W×D×H,equipment weight:10kg

Working temperature:0-40℃, humidity:30%-90%



Technical Parameters



Torque Disc Diameter 100mm
Torque Calculation G.L unit N.m,can achieve 0.1,0.15,0.25,0.35,0.425N.m torque

Apply Force Time 0-9999times,adjustable,default 100times
Load Weights 2N*1,3N*1,5N*1,7N*1,8.5N*1

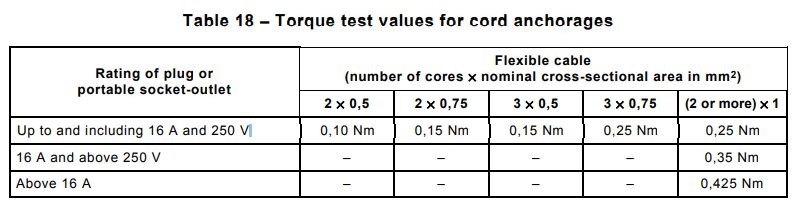

Torque test value for cord anchorages IEC60884-1 Flexible Cable Cord Anchorage 0.425N.M Torque Test Device





IEC60884-1 Flexible Cable Cord Anchorage 0.425N.M Torque Test Device
